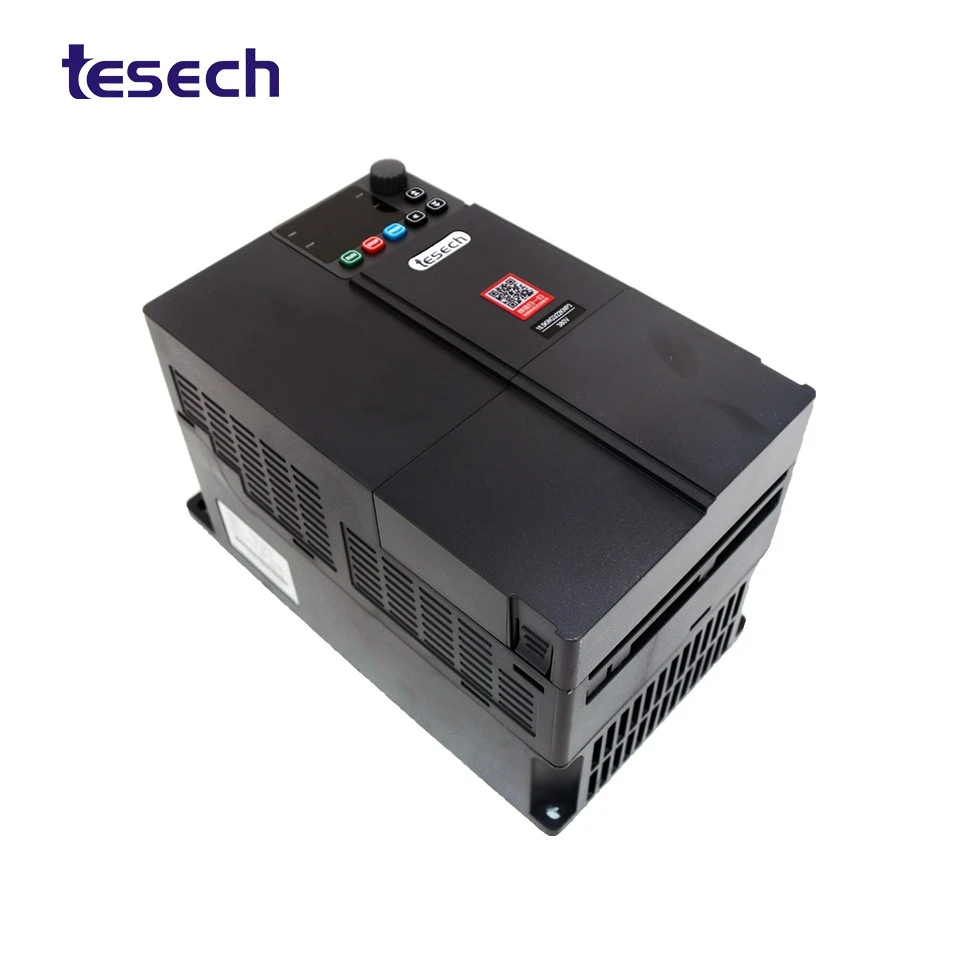

55KW VFD 3-phase Input To 3-phase Output
Performance characteristics:
1. Small size:<2-5KG, easy to carry
2. Supports NFC and Bluetooth functions
3. Support soft boot
4. Power: 0.37-500 kw.
5. Voltage: 110/220/380 V
6. Frequency: 1-120 HZ.
7. Output phases: single-phase and three-phase Application field: Mainly used in the drive of AC motors
|
Motor horse |
55KW |
Insulation Class |
F |
|
Input Voltage |
380v |
Weight |
2.5KG |
|
Output Voltage |
380v |
Starter |
Soft starter |
|
Input/Output phase |
3-phase |
Warranty |
12 months |
|
Frequency range |
1-120HZ |
HS CODE |
8537109090 |
|
Supported type |
NFC/Bluetooth |
Customized design |
Accepted |
|
Working temperature |
0--50°C |
Specification |
Standard or Customized |
|
Protection Class |
IP54 |
Original |
China |
|
Duty |
S1 |
Brake |
Available |
Product Application Introduction:
|
AC variable speed gear motor |
Classification:ac gear motor |
|
Introduction: 1.Low noise: below 40dB. 2.material:100% copper, stainless shaft 3. High Efficiency: motor efficiency can add to 85-90%. 4. output shaft:hollow or output shaft. 5.High Torque: Higher than standard planetary gear reducers. 6. High Stability: Made from high-strength alloy steel, the entire gear undergoes hardening treatment, not just surface hardening, ensuring a long service life and maintaining initial precision even after prolonged use. 1. The turbo worm micro reduction motor uses a speed converter of gears to achieve the required number of rotations of the micro motor and obtain a large torque. The turbo worm reducer is composed of a housing, worm gear, bearings, and shaft. The function of the housing is to support and fix the shaft components and ensure the correct relative position of the driving parts. The main advantages of the turbo worm micro reduction motor are compact structure, fast heat dissipation, simple installation, high speed ratio, high torque, high load-bearing capacity, smooth operation, low noise, and self-locking function that other micro reduction motors do not have. 3. The disadvantage is low efficiency, usually only about 60%. The turbo worm micro reduction motor outputs through a shaft, making it difficult to control backlash. After a long running in time, the backlash of the turbo worm is relatively large.: Ratio/Reduction ratio: ① The primary speed ratio i ranges from 3:1 to 100:1; ② Secondary speed ratio i=100:1~250:1. Output torque: up to 20-100N.m. |
|
|
Advantage:Low noise and cheap cost |
|
|
Data:① The primary speed ratio i ranges from 3:1 to 100:1; ② Secondary speed ratio i=100:1~250:1. Output torque: up to 20-50N.m. |
|
|
Material:Stainless and aluminum |
|
|
Outage image:90 degree |
|
|
Design:OEM |
|
|
Quality control |
Assembly process:1.choose per customers' request,like output torque,rpm and dimension , 2.offer 2D or 3D drawings for confirmation, 3.baiting, 4. Thermalization, 5.oxidation. 6. testing before delivery, 7.package |
|
Warranty：12 months warranty |
|
|
Certification:CE/3C/ROSH |
|
|
After-sales |
Package:Box or wood package |
|
Installation:free video installation direction. |
|
|
Part Support:Yes |
|
|
Others |
Sample:Yes |
|
Distributor:Yes |
|
|
Payment Term:TT/Online Credit |
|
|
FAQ |
FAQ |
Communication frequency converters are widely used in various fields and scenarios, mainly including the following aspects:
Industrial transmission system: In industries such as textiles, chemicals, and steel, frequency converters are widely used to drive electric motors, achieving precise speed adjustment and control of mechanical equipment such as spinning machines, mixers, and winches. By adjusting the frequency and voltage of the motor power supply, the frequency converter can achieve precise control of the motor speed, torque, and power, thereby improving production efficiency and reducing energy consumption.
Power industry: Frequency converters play an important role in the power industry, running through the entire power generation process. In wind power generation, hydropower generation, coal-fired power generation, slag cleaning, exhaust gas transmission and other systems, frequency converters can control fans and pumps to change the air and water supply volume, adapt to changes in the system, achieve energy-saving and safety effects, and ensure the continuous and stable operation of the system.
Oil and gas drilling and production industry: Frequency converters are also widely used in the oil and gas drilling and production industry, mainly for load type motors such as gas compressors, water injection pumps, pumping units, oil transfer pumps, submersible pumps, etc. The use of frequency converters can greatly save energy and reduce emissions.
Building materials industry: In the building materials industry, frequency converters are mainly used in motors such as crushers, blowers, exhaust fans, rotary kilns, and conveyors. Installing a frequency converter can save about 30% of electricity and significantly reduce energy consumption.
Coal industry: In the coal industry, frequency converters are used in equipment such as mine hoists to improve the automation level and transmission capacity of motors, while reducing energy consumption.
Air conditioning system: In the air conditioning and refrigeration industry, frequency converters are used to control the speed of compressors, optimize the cooling effect and energy efficiency of air conditioning. By adjusting the compressor speed, energy consumption can be reduced while maintaining the cooling effect.
Fans and pumps: In fluid machinery such as fans and pumps, frequency converters achieve precise control of equipment operation status by adjusting
air volume and water volume, improving equipment operating efficiency and reducing energy consumption.
Elevator industry: In the elevator industry, frequency converters are used to control the drive system of elevators, achieving precise control of elevator speed, starting and braking processes, and improving the operational efficiency and safety of elevators.
Printing and dyeing machinery: In printing and dyeing machinery, frequency converters are used for synchronous operation and tension control of multi unit equipment to ensure printing and dyeing quality.
Other fields: Communication frequency converters are also widely used in robotics, automation equipment, aerospace, ships and other fields. Through precise control of the speed and performance of various equipment, efficient, energy-saving and safe operation can be achieved.
Feature:
1.Efficient and energy-saving: AC frequency converters adapt to changes in load by adjusting the speed of the motor, avoiding energy waste during the start and stop of traditional motors and significantly improving energy utilization efficiency
2.Wide speed regulation range: AC frequency converters can achieve a wide range of speed regulation control, from zero speed to rated speed, and even higher, suitable for speed regulation needs in various working conditions
3.High stability: Adopting a dual controller design, the operation is stable and reliable. Support multiple control methods, such as asynchronous motor vector control, asynchronous motor control, and permanent magnet vector control, to adapt to different load requirements
4.Complete protection function: The AC frequency converter has protection functions such as short circuit, overcurrent, leakage, phase failure, grounding, overheating, overvoltage, undervoltage, three-phase imbalance, etc., ensuring the safe operation of the equipment
5.Low maintenance cost: The main components are made of high-quality imported products, which have a long service life and maintenance free characteristics. Good electromagnetic compatibility, no need for additional filters or reactors, reducing maintenance costs
6.Strong applicability: AC frequency converters are suitable for various types of motors, including asynchronous motors and permanent magnet synchronous motors, and support speed sensorless operation, improving the flexibility and reliability of the system
Material:
The materials of AC frequency converters mainly include aluminum alloy, steel, plastic, and fiberglass. The selection of these materials is based on their characteristics and their impact on the performance of the frequency converter.
1.aluminium alloy
Aluminum alloy is commonly used in the manufacture of heat sinks and casings for frequency converters due to its excellent thermal conductivity and lightweight properties. Aluminum alloy heat sinks can effectively dissipate the heat generated inside the frequency converter, ensuring the stable operation of the equipment. Meanwhile, the aluminum alloy casing has the characteristics of sturdy and durable structure, which can protect the electronic components inside the frequency converter from external environmental damage
2.steel products
Steel has high corrosion resistance and strong seismic resistance, making it suitable for applications in harsh environments. Steel is mainly used to manufacture components such as power boards and connection boards for frequency converters, providing a stable structure and strong protective capabilities to ensure that the frequency converter can still work normally in harsh environments
3.Plastic
Plastic material is lightweight, inexpensive, and easy to process and shape, commonly used to make components such as the casing and solder pads of frequency converters. Plastic casing not only effectively protects the internal electronic components, but also resists corrosion and 4.chemical erosion. In addition, plastic materials are not prone to electromagnetic interference, which is beneficial for ensuring the stable operation of the frequency converter
5.glass fibre
Fiberglass has excellent electrical and thermal insulation properties and is commonly used in the manufacture of circuit boards and enclosures for frequency converters. Fiberglass circuit boards can provide good electrical connections and heat dissipation, while fiberglass enclosures can effectively isolate the impact of external environment on frequency converters
Company Services:
We are a techlogy-based factory specializing in the AC/DC Motor production and trade of them.
At present, there are more than 25 years of company history and export experience.We cooperate with many well-known brand companies such as Medias,Bosch..
Professional customized one-stop optical solutions, including technical support, product customization and after-sales service. Through sustainable business operations in many countries and regions around the world, we provide technological innovation, supply chain and manufacturing solutions, and end-market product matching for various industries. Provide professional engineers and business teams, standardized mechanical equipment, controllable product quality, fast production speed, and efficient service feedback.
RFQ:
Q: Whether your AC Drive can do single phase input and three phase output?
A: Yes.
Q: Whether your ac drive can do soft starter?
A: Yes
Q: Whether there is electric manual of our drive?
A:Yes.
