What is the Modbus interface of an ac servo motor?

In the realm of industrial automation, AC servo motors play a pivotal role in ensuring precise motion control. One of the key aspects that enhance their functionality and connectivity is the Modbus interface. As an established AC servo motor supplier, I am here to delve deep into what the Modbus interface of an AC servo motor is and why it matters in modern industrial applications.

Understanding Modbus: A Brief Overview

Modbus is a serial communication protocol that was developed in the late 1970s by Modicon (now Schneider Electric). It is an open standard, which means that it can be used by anyone without licensing fees. This has made Modbus one of the most widely used protocols for industrial electronic devices, including AC servo motors.

The primary purpose of Modbus is to enable communication between different devices in a network. It allows devices such as sensors, actuators, and controllers to exchange data in a standardized way. This standardization simplifies the integration of different devices from various manufacturers, reducing the complexity and cost of system design.

How Modbus Works with AC Servo Motors

When it comes to AC servo motors, the Modbus interface serves as a bridge between the motor and other control devices in the industrial network. It enables the control system to send commands to the servo motor and receive feedback from it.

Command Transmission

The control system can use the Modbus protocol to send commands to the AC servo motor. These commands can include setting the motor's speed, position, and torque. For example, in a robotic arm application, the control system can send a Modbus command to the servo motor to move the arm to a specific position. The servo motor then interprets this command and adjusts its operation accordingly.

Feedback Reception

In addition to sending commands, the Modbus interface also allows the control system to receive feedback from the AC servo motor. This feedback can include information such as the motor's actual speed, position, and current consumption. By monitoring this feedback, the control system can ensure that the motor is operating within the desired parameters and make adjustments if necessary.

Types of Modbus Interfaces for AC Servo Motors

There are several types of Modbus interfaces that can be used with AC servo motors, each with its own characteristics and applications.

Modbus RTU

Modbus RTU (Remote Terminal Unit) is the most commonly used Modbus interface for AC servo motors. It uses a binary encoding format, which makes it more efficient in terms of data transmission. Modbus RTU is typically used in serial communication networks, such as RS-485. It is suitable for applications where the communication distance is relatively short and the data transfer rate is moderate.

Modbus TCP

Modbus TCP is a variant of the Modbus protocol that uses the TCP/IP network protocol. It allows for faster and more reliable communication over Ethernet networks. Modbus TCP is often used in applications where the control system is connected to a local area network (LAN) or the internet. For example, in a factory automation system, Modbus TCP can be used to connect multiple AC servo motors to a central control server.

Advantages of Using Modbus Interface in AC Servo Motors

The use of Modbus interface in AC servo motors offers several advantages for industrial applications.

Compatibility

As an open standard, Modbus is supported by a wide range of devices from different manufacturers. This means that AC servo motors with Modbus interface can be easily integrated into existing industrial networks, regardless of the brand of other devices in the system.

Flexibility

Modbus allows for flexible configuration of the communication parameters, such as the baud rate, data format, and slave address. This flexibility enables the system designer to optimize the communication performance according to the specific requirements of the application.

Cost-Effectiveness

Since Modbus is an open standard, there is no need to pay licensing fees for using it. This makes it a cost-effective solution for industrial communication, especially for small and medium-sized enterprises.

Applications of AC Servo Motors with Modbus Interface

AC servo motors with Modbus interface are widely used in various industrial applications, including:

CNC Machine Tools

In CNC machine tools, such as Special for CNC Lathe Machine Servo Motor, the Modbus interface allows the control system to precisely control the movement of the cutting tools. By sending commands to the servo motors, the control system can achieve high-precision machining operations, such as milling, turning, and drilling.

Robotics

Robotic systems rely on AC servo motors with Modbus interface for precise motion control. The Modbus interface enables the robot controller to send commands to the servo motors to move the robot's joints to specific positions. This allows the robot to perform complex tasks, such as pick-and-place operations and assembly work.

Packaging Machinery

In packaging machinery, AC servo motors with Modbus interface are used to control the movement of the packaging materials and the filling and sealing operations. The Modbus interface allows the control system to adjust the speed and position of the servo motors in real-time, ensuring accurate and efficient packaging processes.

Our AC Servo Motors with Modbus Interface

As an AC servo motor supplier, we offer a wide range of AC servo motors with Modbus interface to meet the diverse needs of our customers. Our motors are designed with high precision and reliability, and they are suitable for various industrial applications.

One of our popular products is the 7.5KW 380V AC Servo Motor. This motor is equipped with a Modbus RTU interface, which allows for easy integration into existing industrial networks. It has a high power density and can provide stable and accurate motion control.

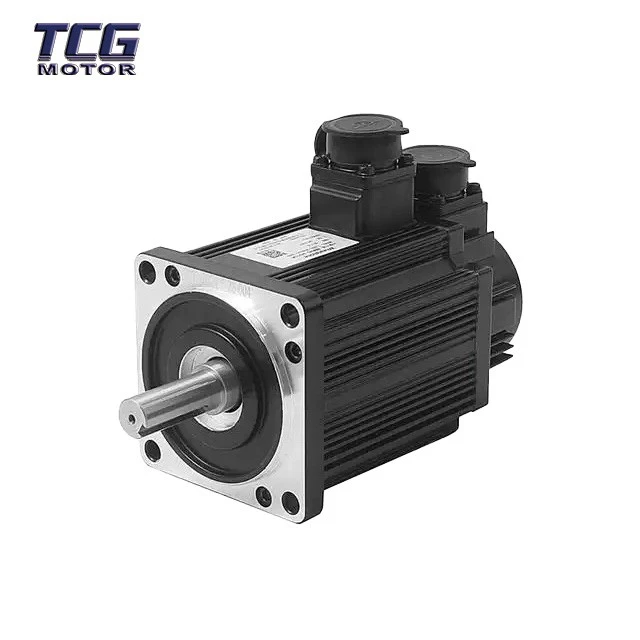

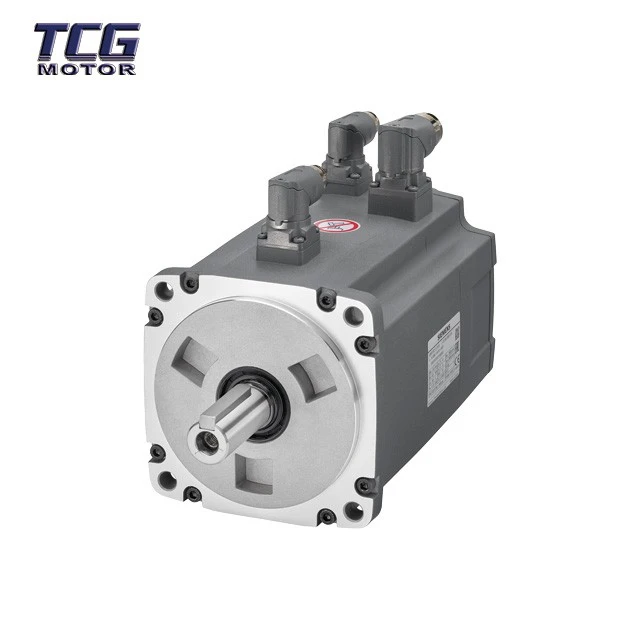

Another product is our High Speed Servo Motor. This motor is designed for applications that require high-speed operation. It also features a Modbus interface, which enables the control system to precisely control the motor's speed and position.

Contact Us for Procurement

If you are interested in our AC servo motors with Modbus interface, we invite you to contact us for procurement. Our team of experts is ready to provide you with detailed product information and technical support. We can also help you select the most suitable motor for your specific application. Whether you are a small business or a large industrial enterprise, we are committed to providing you with high-quality products and excellent service.
